ALCD1-3

This is a guideline with step by step process in installing ALCD1-3 Laundry Spark

IMPORTANT REMINDERS:

  1. Before the installation, make sure that the laundry machine is turned off (i.e. unplugging the power cord)
  2. You have the key (if necessary) to open the service compartment where the computer board is

Step 1. Unplug the coin-acceptor from the computer board

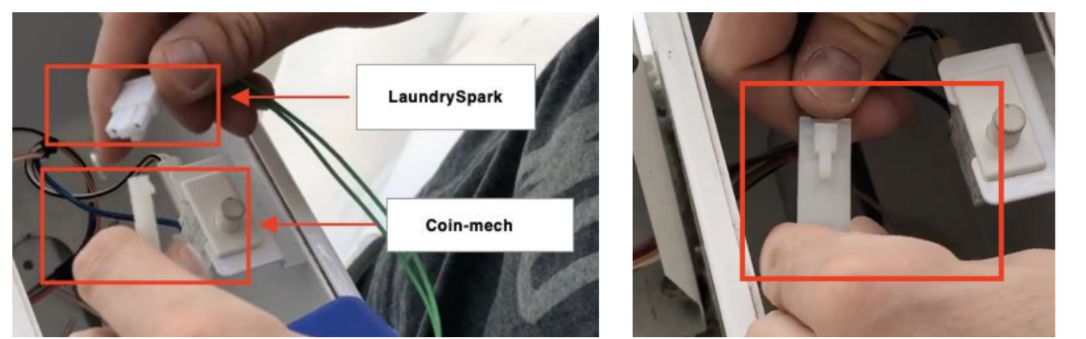

Step 2. If you are keeping the coin payment option for the users, connect the LaundrySpark to the coin-mech (using the connector below):

Step 3. Connect the Spark's harness to the computer board (using the connector below)

Step 4. Connect the power plug from LaundrySpark (the white 6-pin connector) to the machine's control board
